Mobile FR3 duo¶

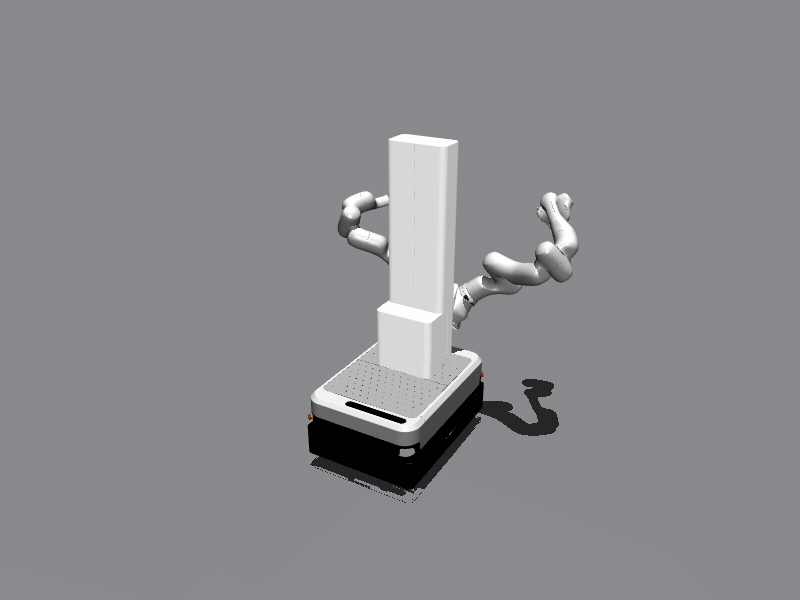

Two FR3 arms and a vertical lift on a TMR swerve base, in one physics scene, served by three independent FCI bridges plus a REST spine device. To a client stack it is three robots and a lift controller — the same three robots and lift controller it talks to on the real rig.

Architecture¶

The whole rig is one physics scene. The arms are rigidly mounted to the lift and the lift to the chassis, so base motion carries both arms — exactly as on hardware. What is split is the protocol surface:

                    ┌──────────────────────────────────────────┐
                    │        one MuJoCo physics scene          │
                    │   TMR base + lift + left FR3 + right FR3 │
                    └───┬──────────┬──────────┬────────────┬────┘
                        │          │          │            │
              ┌─────────┴──┐  ┌────┴─────┐  ┌─┴────────┐  ┌┴──────────┐
              │ FCI bridge │  │ FCI      │  │ FCI      │  │ spine     │
              │ base       │  │ bridge   │  │ bridge   │  │ REST stub │
              │            │  │ left     │  │ right    │  │           │
              │ 127.0.0.10 │  │127.0.0.11│  │127.0.0.12│  │127.0.0.13 │
              │ TCP 1337   │  │ TCP 1337 │  │ TCP 1337 │  │ HTTPS 443 │
              │ Cartesian  │  │ joint    │  │ joint    │  │ prismatic │
              │ velocity   │  │ pos/vel/ │  │ pos/vel/ │  │ lift      │
              │ (twist)    │  │ torque   │  │ torque   │  │ move      │
              └────────────┘  └──────────┘  └──────────┘  └───────────┘

Why three IPs and not three ports. libfranka hard-codes the command port to 1337 and offers no override, so three robots cannot share an address. On Linux all of 127.0.0.0/8 is loopback, so each bridge gets its own 127.0.0.x — no interface aliasing tricks, just ip addr add.

Why the base speaks Cartesian velocity. The TMR base has no joint interface. It is driven through libfranka's kCartesianVelocity motion generator: the client's commanded body-frame twist (O_dP_EE_c) is routed straight into the base's swerve inverse kinematics — per-module steering angle and wheel speed, with the π-ambiguity resolved to minimise steering travel from the previous command. This mirrors the real TMR master, which does swerve IK onboard and treats the wheel joints as state-report-only.

Why the spine is REST, not FCI. On hardware the prismatic lift (franka_spine_vertical_joint) is driven by a separate REST device, not by libfranka. --spine runs a fake version of that device in-process, serving the same HTTPS routes from a constant-velocity motion model and sharing its motion state with the scene — so an unmodified franka_spine_server can drive it and the lift visibly rises in the viewer, carrying the head and both arms with it.

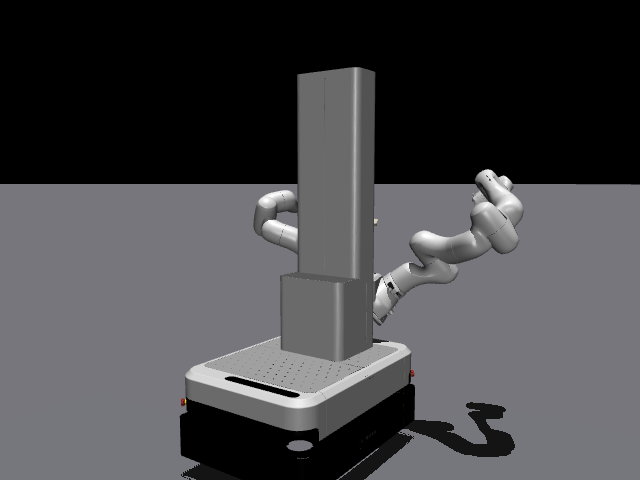

The TMR base and the prismatic lift — The TMR chassis and the prismatic spine lift, rendered from the duo scene.

The address contract¶

Client stacks configure the rig from a .env file. The sim adopts the same convention, so switching between sim and hardware is an IP swap and nothing else:

Role	Address	Interface
base	`127.0.0.10`	FCI, TCP 1337, Cartesian velocity
left arm	`127.0.0.11`	FCI, TCP 1337, joint position / velocity / torque
right arm	`127.0.0.12`	FCI, TCP 1337, joint position / velocity / torque
spine	`127.0.0.13`	REST over HTTPS, port 443

Plus one flag on the client side: FAKE_GRIPPERS=true. The duo scene serves hand-less arms — no gripper server is bound for the duo roles — so the client stack must be told to stub its gripper interfaces out rather than wait for a connection on port 1338.

Launching it¶

Bring the loopback aliases up once per boot:

sudo ip addr add 127.0.0.10/8 dev lo   # base
sudo ip addr add 127.0.0.11/8 dev lo   # left arm
sudo ip addr add 127.0.0.12/8 dev lo   # right arm
sudo ip addr add 127.0.0.13/8 dev lo   # spine (only needed with --spine)

Then start the server:

Full rig (arms + base + spine, viewer)Headless, no spineOn the Genesis backend

run-franka-sim-server --mobile-duo -v \
  --scene-urdf /path/to/mobile_fr3_duo.urdf \
  --mesh-root  /path/to/franka_description \
  --bind base=127.0.0.10 \
  --bind left=127.0.0.11 \
  --bind right=127.0.0.12 \
  --spine

run-franka-sim-server --mobile-duo \
  --scene-urdf /path/to/mobile_fr3_duo.urdf \
  --mesh-root  /path/to/franka_description \
  --bind base=127.0.0.10 \
  --bind left=127.0.0.11 \
  --bind right=127.0.0.12

run-franka-sim-server --mobile-duo --physics genesis \
  --scene-urdf /path/to/mobile_fr3_duo.urdf \
  --mesh-root  /path/to/franka_description \
  --bind base=127.0.0.10 \
  --bind left=127.0.0.11 \
  --bind right=127.0.0.12

Needs the [genesis] extra, and caps out around 0.4x real time on this scene. See backends.

Generating the scene URDF¶

--scene-urdf wants the combined mobile_fr3_duo URDF. Build it with the bundled script:

scripts/generate_mobile_duo_urdf.sh <franka_description_dir> <output.urdf>

It runs the upstream xacro from a sourced ROS 2 Jazzy environment with the options this server expects (hand:=false, explicit robot_types, no ROS 2 control or Gazebo tags).

The script pins the franka_description sha on purpose

It asserts the checkout is at the exact commit the mesh paths and joint names were generated against, and refuses to run otherwise. A different checkout can silently rename meshes or joints out from under the sim — the failure mode is a scene that loads and then behaves subtly wrong, which is far worse than a refusal.

VR teleoperation¶

The duo scene exists because there is a real rig it stands in for. The lab stack at BarisYazici/fr3-droid, branch feat/fr3-mobile-duo, drives that rig with a Meta Quest 2/3 doing DROID-style teleoperation: the headset's controller poses become end-effector targets, and the targets go through ros2_control and franka_ros2 down to 1 kHz torque control on both arms, while the operator drives the base and lift.

Against franka-sim, that entire stack runs unchanged. The same config file, the same controllers, the same 1 kHz loop — only the IPs in .env point at 127.0.0.10–.13 instead of the rig. That is the whole point of the protocol-level approach: the teleop stack cannot tell it is not talking to the robot, so what you debug in sim is the code that ships.

Practically this means you can develop and tune the teleop mapping, the controller switching and the base/arm coordination without booking the rig — and, since the sim is headless-capable, run it on a server with the Quest driving it over the network.

Limitations¶

The duo scene is a protocol- and kinematics-faithful stand-in, not a dynamics-calibrated digital twin. Be precise about what it does not give you:

Contacts are disabled in the duo scene

Unlike the single-arm scene, contacts are switched off entirely here. The chassis' URDF collision meshes interpenetrate as authored, and nothing in the scene currently depends on contact — the base pose is integrated kinematically and both arms are servo-driven. The arms will pass through the chassis, the lift and each other. Do not use this scene to validate collision avoidance or self-collision limits.

Arm gains are not calibrated against real-FR3 logs

The position-mode PD gains are fixed constants, and SetJointImpedance is acknowledged but not enforced. Independent measurements against a real FR3 show the sim over-travelling by roughly 1.15–1.28× and ringing where the real arm settles, because joint friction is not modelled. Trajectories will look right in shape and wrong in damping.

Base odometry is open-loop dead reckoning

The base's O_T_EE is the commanded twist, Euler-integrated — no wheel contact or slip feeds back into it. It cannot drift the way real odometry drifts, and it cannot be wrong the way real odometry is wrong. A known diagnostic artefact: the reported odometry shows a small wobble during steering transitions.

Broader per-field detail is in State & command fidelity.
