franka-rs
franka-rs is a Rust client for the Franka Control Interface, the network protocol a
Franka Research 3 or a Franka Emika Robot (Panda) is controlled through. It speaks that
protocol itself: a TCP channel for commands and the 1 kHz UDP loop for state and commands,
with the robot’s kinematics and dynamics evaluated in the crate. There is no libfranka and
no C++ underneath, so cargo add franka-rs or pip install franka-rs is the whole
installation, and one program drives both robot generations because the protocol version
is negotiated when it connects.
The 1 kHz loop is the library’s job. Your program can be a 1 kHz controller if you want, or a policy at 10 Hz, a script, a notebook cell or a person at a keyboard: it sends targets at its own rate and the crate turns them into a continuous command the robot accepts.

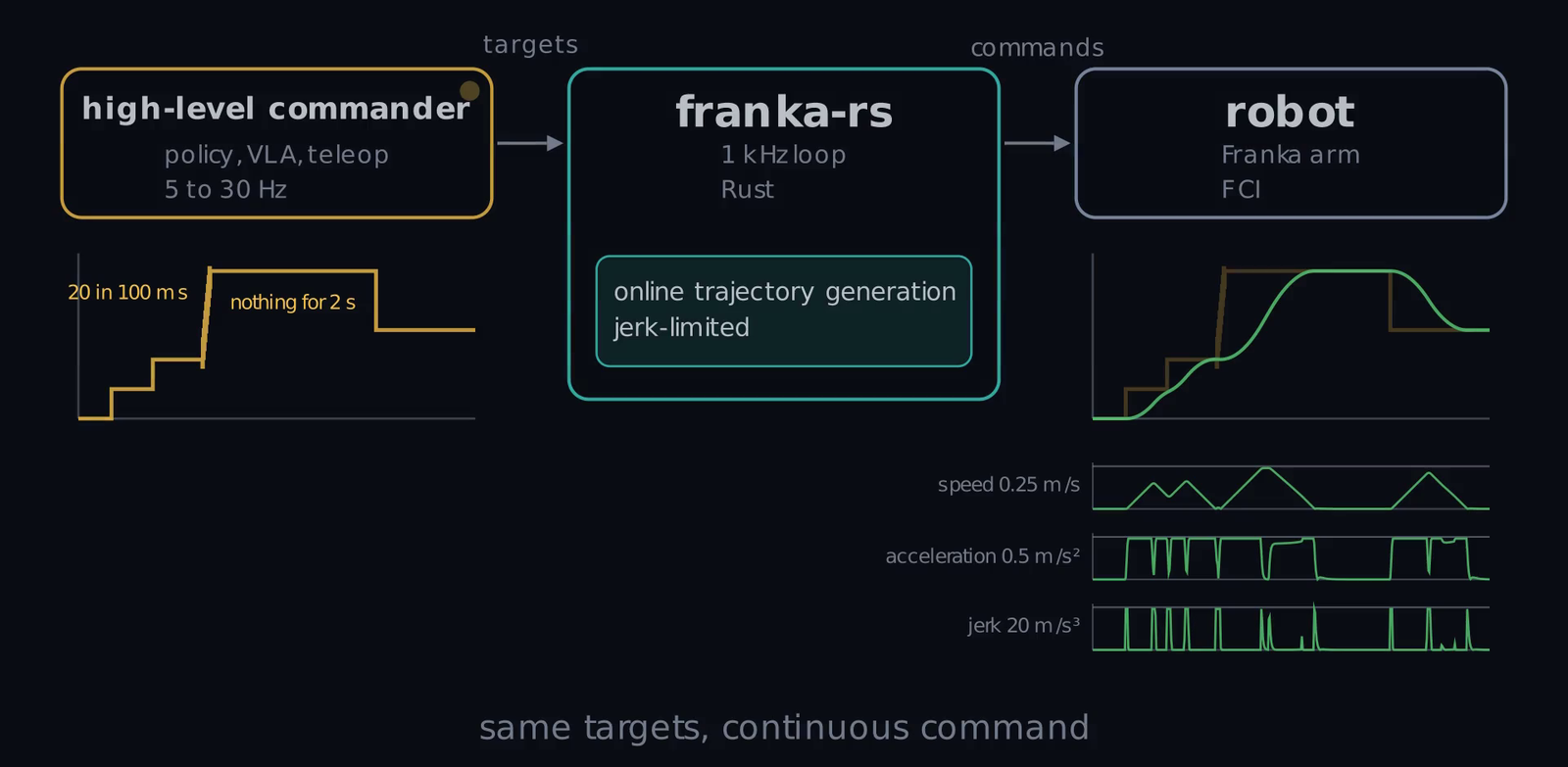

Stepped, bursty, stalling targets in; one continuous command out. Illustration of the generator’s profile for a scripted target sequence under a 0.25 m/s, 0.5 m/s², 20 m/s³ budget.
What you get
- The realtime loop as a library. Write the loop yourself as a callback or with
read_once/write_once, or let the crate run it on a realtime thread and set targets from any thread at any rate. Stepped, bursty or stalled targets become a smooth command under a velocity, acceleration and jerk budget, tracked by the crate’s own impedance torques (the arm stays compliant) or by the robot’s controller;stop()settles and finishes the motion. - A small, safe footprint. One crate. Parsing, rate limiting, trajectory generation and
the control loops are safe Rust and allocate nothing once a motion has started; the
unsafein the crate is confined to the scheduler and socket system calls and to the opt-in loader for the model an FER serves. It cross-compiles to aarch64. - Checked against the reference. Wire layouts, rate limiting, low-pass filtering and error text are checked against libfranka’s sources. Loop timing, measured side by side on real FR3 and FER arms, is the same as libfranka’s; the model agrees to 1e-14.
Start here
| You want to… | Where to look |
|---|---|
| install it and move the arm for the first time | Install, The realtime machine, First program |
| drive it from Python or a notebook | From Python |
| try it without a robot | Without a robot: franka-sim |
| know what can stop you before it does | Things to keep in mind |
| do one specific thing | the How-to pages, starting with Command from a low-rate program |
| see the protocol, the constants and the measurements | the Reference pages, starting with Compared with libfranka |
| read the rustdoc | API reference |
Status
Version 0.3. Both protocol versions, every control interface, target control from Rust
and Python, the gripper and the flight recorder have run on real arms; the dates and
figures are in Benchmarks and hardware validation. The
impedance backend of target control, new in 0.3.0 and the default, has run on franka-sim
and on two real FERs, not yet on an FR3. Not there yet: a ros2_control hardware
interface, the vacuum gripper, and a published simulator image for the FER. The
changelog lists what changed in each release.
franka-rs is an unofficial project and is not affiliated with Franka Robotics GmbH;
Franka, Franka Emika, Panda and FR3 are their trademarks. The crate is Apache-2.0, like
libfranka. Its API shape was informed by Marco Boneberger’s
libfranka-rs; no code from it is used.
